Lima Locomotive & Machine Co.

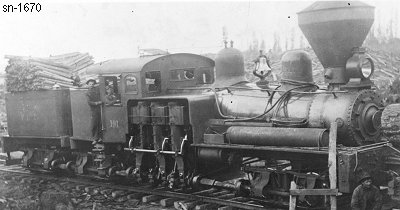

Photo Credit:
John Henderson collection
Shop Number 1670 - Built for: Washington, Idaho & Montana RY
{1,110th Lima Built Shay}
Built:
5-12-1906
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.75
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Coal
Fuel Capacity:
2.5 Cords / 5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
111,400
Owners:
Washington, Idaho & Montana RY Co., Washington Idaho & Montana RY #101, Potlatch, ID
(12-31-1909) Potlatch Lbr. Co., Inc. #101, Potlatch, ID
(1931) Potlatch Forests Inc., Washington Idaho & Montana RY #101, Potlatch, ID
Disposition: (12-15-1939) Scrapped
Additional Notes:
