Lima Locomotive & Machine Co.

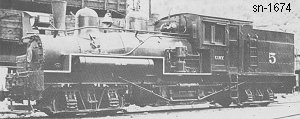

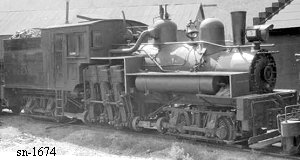

Photo Credit:
Left: Bert H. Ward collection
Right: by Otto Perry
Shop Number 1674 - Built for: Argentine Central RY
{1,114th Lima Built Shay}
Built:
6-19-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.74
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
75,700
Owners:
Argentine Central RY Co., Argentine Central RY #3, Silver Plume, CO
(1909) Uintah RY Co., Uintah RY #5, Atchee, CO
(11-1929) Rebuilt with new boiler from Lima
Disposition: (1939) Scrapped
Additional Notes: Infrequently used in 1937-1938 period.
