Lima Locomotive & Machine Co.

Photo Credit:
John T. Labbe collection

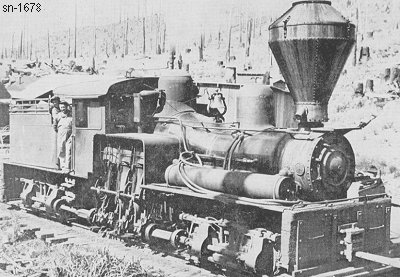

Shop Number 1678 - Built for: Ostrander RY & Tbr. Co.
{1,118th Lima Built Shay}
Built:
5-26-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
15,567 Lbs.
 Factor of
Adhesion:
5.43
Maximum
Safe Speed:
18.6
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 2 Tons
 Water Capacity:
1,560 Gallons
Empty Weight:
As built
70,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Ostrander RY & Tbr. Co., #2 (1st) later #10 later #1 (2nd), Ostrander, WA
Disposition: Scrapped
Additional Notes: (1921-1924) as #10, (1927-1946) as #1
