Lima Locomotive & Machine Co.

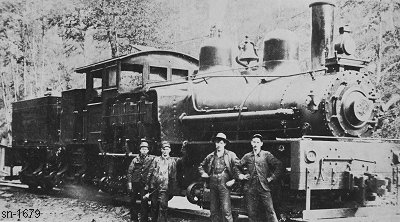

Photo Credit:
Thomas T. Taber collection
Shop Number 1679 - Built for: Great Southern Lbr. Co.
{1,119th Lima Built Shay}
Built:
8-3-1906
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.70
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
109,100
Owners:
Great Southern Lbr. Co., Buffalo, NY, For:
Goodyear Lbr. Co. #20, Galeton, PA
(1-27-1920) Glen Junction Transfer Co. (International Paper Co.) #6 , Berlin, NH
Disposition: Scrapped
Additional Notes:
