Lima Locomotive & Machine Co.

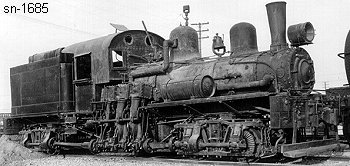

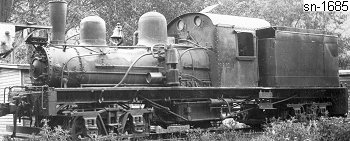

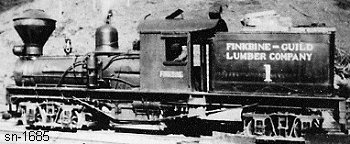

Photo Credit:
Top Left: Mendocino County Museum collection
Bottom Left: by John Henderson
Right: Clevis & Debbie Jones collection
Shop Number 1685 - Built for: Finkbine Lbr. Co.
{1,1125th Lima Built Shay}
Built:
4-20-1906
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,290 Lbs.
 Factor of
Adhesion:
4.30
 Maximum
Safe Speed:
13.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 1.75 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
66,100
Owners:
Finkbine Lbr. Co. #12, Wiggins, MS
(3-18-1926) Finkbine-Guild Lbr. Co. #1 later #52, Fort Bragg, CA
(3-18-1927) Converted to oil burner
(9-4-1928) Southern Redwood Corp. #52, Rockport, CA
(2-1933) Cottoneva Lbr. Co. #52, Rockport, CA
(2-1938) Rockport Redwood Co. #52, Rockport, CA
(7-18-1942) Clifford C. Bong & Co. #1, Lathrop, CA
Clifford C. Bong & Co. #1, Dominguez, CA
Disposition: (1945) Scrapped
Additional Notes:
