Lima Locomotive & Machine Co.

Photo Credit:

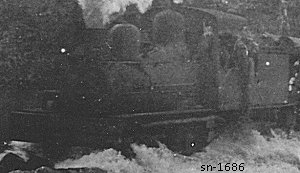

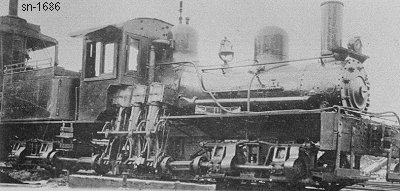

Left: Terry Passmore collection - Right George Kadelak collection (1923)
Shop Number 1686 - Built for: Pine Tree Lbr. Co., Ltd.
{1,126th Lima Built Shay}
Built:
4-17-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,832 Lbs.
Factor of
Adhesion:

3.85
Maximum
Safe Speed:

13.9
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
63,900
Owners:
Pine Tree Lbr. Co., Ltd., Winona & Western RR #5, Winona, LA
(1912) Pine Belt Lbr. Co. #5, Fort Towson, OK
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(4-26-1923) W. P. Brown & Sons Lbr. Co., Mobile & Gulf RR #3, Fayette, AL
Disposition: Scrapped
Additional Notes: Converted to wood burner
