Lima Locomotive & Machine Co.

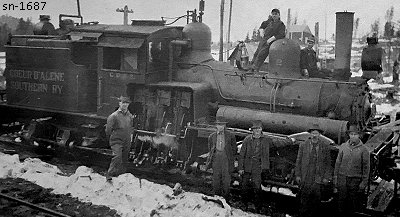

Photo Credit:
by unknown (c1910)
Shop Number 1687 - Built for: B. R. Lewis Lbr. Co.
{1,127th Lima Built Shay}
Built:
5-17-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.80
Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
66,500
Owners:
Hofius Steel & Equp. Co. (D), Seattle, WA
B. R. Lewis Lbr. Co., Idaho & Northwestern #2 "EARL M. RODGERS", Fernwood, ID
(2-1909) Blackwell Lbr. Co., Coeur D'Alene Southern RY #2, Fernwood, ID
(5-8-1928) Blackwell Lbr. Co. #2, Emida, ID
Disposition: Scrapped
Additional Notes:
Idaho & Northwestern is lettered on tank.
Other listings versions include Idaho & North Western RR and Idaho & Northern RR
