Lima Locomotive & Machine Co.

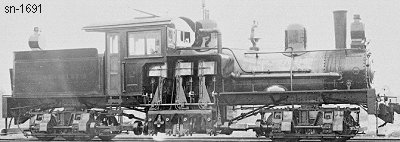

Photo Credit:
George R. Kadelak collection (BP 6-1906)
Shop Number 1691 - Built for: Tellico River Lbr. Co.
{1,131st Lima Built Shay}
Built:
5-26-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.79
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
76,600
Owners:
Tellico River Lbr. Co. #2, Tellico Plains, TN
Tellico River Lbr. Co. #2, Unaka, NC
(7-8-1921) Babcock Lbr. and Land Co., Alcoa (Maryville), TN
(4-19-1924) Scheduled to scrap
Southern Iron & Equip. Co. (D) #1988, Atlanta, GA
(9-2-1924) Ohio & Michigan Sand & Gravel Co. #2, Chisholm, MI
Disposition: Scrapped
Additional Notes:
