Lima Locomotive & Machine Co.

Photo Credit:
by Wilber Watring

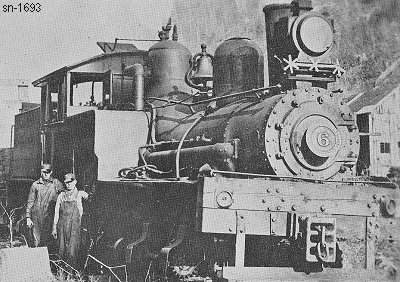

Shop Number 1693 - Built for: Kendall Lbr. Co.
{1,133rd Lima Built Shay}
Built:
5-30-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.76
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
76,500
Owners:
Kendall Lbr. Co., Preston RR #6, Crellin, MD
(2-12-1928) Stanley Coal Co., Preston RR #6, Crellin, MD
Disposition: (1930's) Scrapped
Additional Notes:
