Lima Locomotive & Machine Co.

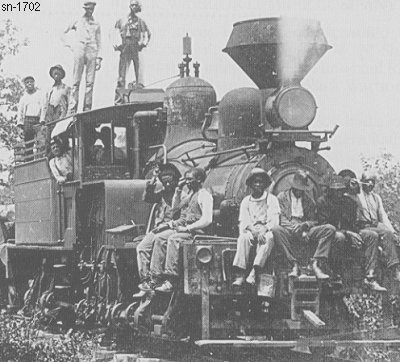

Photo Credit:
Ethel Greenwood collection
Shop Number 1702 - Built for: Sumter Lbr. Co.
{1,142nd Lima Built Shay}
Built:
6-28-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
3.98
Maximum
Safe Speed:
13.9
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 2 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
64,535
Owners:
Sumter Lbr. Co., Hixon, Sumter & Northwestern RR #1, Sumter, AL
(c1912) Sumter Lbr. Co. #1, Electric Mills, MS
Disposition: (3-1941) Scrapped
Additional Notes:
