Lima Locomotive & Machine Co.
Photo Credit:

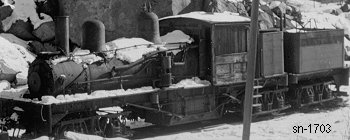

Left: by Thomas Taber III (1953)

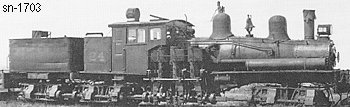

Right: Pederson's Photo Studio - Frank King collection
Shop Number 1703 - Built for: Minnesota Land & Construction Co.
{1,143rd Lima Built Shay}
Built:
7-9-1906
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.65
Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
107,600
Owners:
Virginia & Rainy Lake Co., Duluth, Virginia & Rainy Lake RY #24, Clear Lake, MN
(12-19-1908) Virginia & Rainy Lake Co., Clear Lake, MN
(1912) Virginia & Rainy Lake Co. #24, Cusson, MN
(10-9-1929) Company closed down
(by 1930) Hudson Bay Mining & Smelting Co. Ltd. #24 later #102, Flin Flon, Manitoba, CAN
(1933) Stored out of service
Disposition: (by 1961) Scrapped
Additional Notes:
