Lima Locomotive & Machine Co.

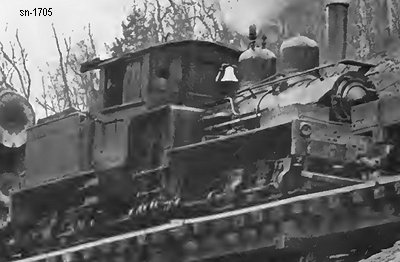

Photo Credit:
American Lumberman Magazine
Shop Number 1705 - Built for: Keys Fannin Lbr. Co.
{1,145th Lima Built Shay}
Built:
6-30-1906
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
4.74
Maximum
Safe Speed:
10.3
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
800 Gallons
Empty Weight:
As built
40,900
Owners:
Keys Fannin Lbr. Co. #3, Herndon, WV
(c1912) Guyan Lbr. Co. #2, Herndon, WV
Disposition: (10-18-1924) Scrapped (Condemmed by 1-20-1921)
Additional Notes:
