Lima Locomotive & Machine Co.

Photo Credit:
Max Robin collection ( BP 12-1906)

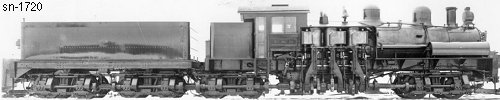

Shop Number 1720 - Built for: Chesapeake & Ohio RY
{1,160th Lima Built Shay}
Built:
12-22-1906
Class:
D
150-4
Trucks:
4
Cylinders:
[#-Dia. x Stroke]
3 - 17 x 18
Gear Ratio:
2.05
Wheel Dia.:
46"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 62.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
52,161 Lbs.
Factor of
Adhesion:

5.95
Maximum
Safe Speed:

26.7
Fuel Type:
Coal
Fuel Capacity:
9 Tons
Water Capacity:
8,000 Gallons
Empty Weight:
As built
240,700
Owners:
Chesapeake & Ohio RY Co., Chesapeake & Ohio RY #2, Cane Fork, WV
(8-1923) Retired and stored
Disposition: Scrapped
Additional Notes:
