Lima Locomotive & Machine Co.

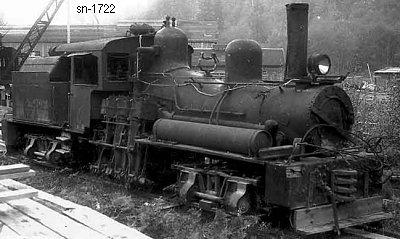

Photo Credit:
Martin Hansen collection
Shop Number 1722 - Built for: Stimson Mill Co.
{1,162nd Lima Built Shay}
Built:
8-1-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.89
Maximum
Safe Speed:

17.1
Fuel Type:
Wood / Coal
Fuel Capacity:
1.75 Cords / 2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,800
Owners:
Hofius Steel & Equp. Co. (D), Seattle, WA
Stimson Mill Co., Marysyille & Northern RY #17, Bryant, WA
Stetson & Post Lbr. Co. #17, Maple Valley, WA
(1927) H. J. Armstrong Co. (D), Portland, OR
Carlson Lbr. Co. #17, Mineral, WA
Carlson Shingle Co. #17, Morton, WA,
(1938) Abandoned at Morton, WA
Disposition: Scrapped
Additional Notes:
