Lima Locomotive & Machine Co.

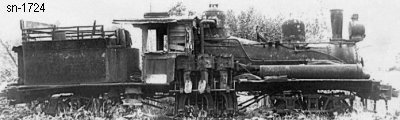

Photo Credit:
by H. A. Hill (1937)
Shop Number 1724 - Built for: Sawmill Phoenix
{1,164th Lima Built Shay}
Built:
7-3-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.81
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 5 Tons
 Water Capacity:
1,560 Gallons
Empty Weight:
As built
64,410
Owners:
Hofius Steel & Equp. Co. (D), Seattle, WA
Sawmill Phoenix (Springdale Lbr. Co.) #1, Springdale, WA
(1907) Phoenix Lbr. Co. #1, Springdale, WA
E. P. Jamison Co. (D), Seattle, WA
(4-21-1924) Lake Creek Lbr. Co. #1, Morton, WA
(6-4-1927) Harvey E. Reed Log. Co. #1, Morton, WA
(2-21-1928) Leased to: Carlson Lbr. Co . #2, Mineral, WA
Disposition: (9-17-1938) Scrapped
Additional Notes:
