Lima Locomotive & Machine Co.
Photo Credit:
Left: David Price collection
Top: Tony Howe collection

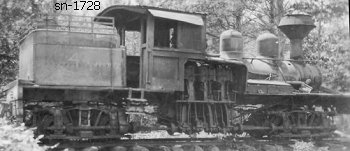

Shop Number 1728 - Built for: Cook-Day Lbr. Co.
{1,168th Lima Built Shay}
Built:
5-18-1906
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

St. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,680 Lbs.
Factor of
Adhesion:

4.84
Maximum
Safe Speed:

10.3
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
830 Gallons
Empty Weight:
As built
43,200
Owners:
Cook-Day Lbr. Co. #3, Tangipahoa, LA
(6-1906) Day Lbr. Co. #3, Tangipahoa, LA
(1913) Louisiana Tbr.Co. #3, Red Lick, MS
Red Lick Lbr. Co. #3, Red Lick, MS
(12-1916) Wood-Russ Lbr. Co. #1, Red Lick, MS
Southern Iron & Equip. Co. (D) #1304, Atlanta, GA
(8-24-1918) John Lindsey Lbr. Co. #3, Laurel, MS
(6-8-1925) For sale
Disposition: Scrapped
Additional Notes: ??Owner: Hazelhurst Lbr. Co., Tangipahoa, MS
??Owner: Hazelhurst Lbr. Co., Red Lick, MS
