Lima Locomotive & Machine Co.

Photo Credit:
Martin E, Hansen collection (1927)

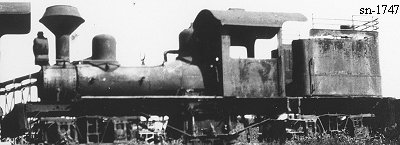

Shop Number 1747 - Built for: Iatt Lbr. Co. Ltd.
{1,187th Lima Built Shay}
Built:
8-22-1906
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,162 Lbs.
 Factor of
Adhesion:
4.07
 Maximum
Safe Speed:
10.9
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,500 Gallons
Empty Weight:
As built
48,200
Owners:
Iatt Lbr. Co. Ltd. #1, Colfax, LA
(12-8-1925) Leased to: Zenoria Lbr. Co., Archie, LA
(2-9-1927) Stored at Colfax, LA and for sale by Iatt Lbr. Co.
(8-7-1928) Zenoria Lbr. Co., Archie, LA
Disposition: Scrapped
Additional Notes:
