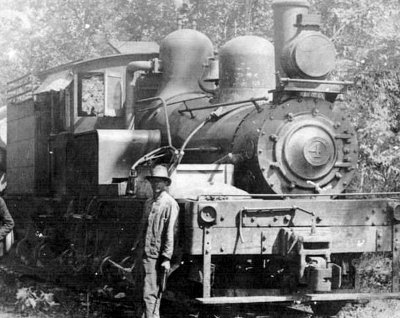

Lima Locomotive & Machine Co.

Photo Credit:
by unknown
Shop Number 1749 - Built for: Grant Land & Timber Co.
{1,189th Lima Built Shay}
Built:
9-22-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.79
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
62,500
Owners:
Grant Land & Lbr. Co., Louisiana RY Co. #4, Selma, LA
(by 8-13-1920) Grant Tbr. & Mfg. Co., Louisiana RY Co. #4, Selma, LA
Disposition: Scrapped
Additional Notes: Shipped to Grant, LA
Some Directories show Grant Land & Tbr. @ Selma
