Lima Locomotive & Machine Co.


Photo Credit:

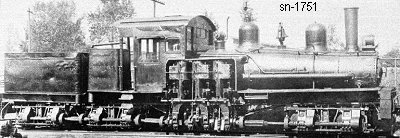

Top: SI&E photo (1926) from Ed Bond collection

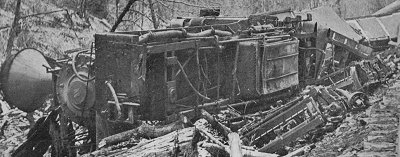

Bottom: Benjamin F. G. Kline collection (4-6-1910)
Shop Number 1751 - Built for: Flint, Erving & Stoner Lbr. Co.
{1,191st Lima Built Shay}
Built:
10-3-1906
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.58
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
106,200
Owners:
Flint, Erving & Stoner Lbr. Co. #2, Dunlevie, WV
(11-2-1906) Wrecked, boiler exploded
(4-6-1910) Wrecked
(5-28-1910) Rebuilt by Lima Locomotive Works (B), Lima, OH
(12-18-1910) Thornwood Lbr. Co. #5, Dunlevie, WV
(1911) Thornwood Lbr. Co. #5, Thornwood, WV (town name changed)
(11-16-1913) Thorny Creek Lbr. Co. #5, Thornwood, WV
(11-16-1913) Leased to:Kendall Lbr. Co. #5, Thornwood, WV
(c1-21-1921) Headley Pine Co. #5, Uniform, AL
(4-7-1925) Turner Pine Co. #5, Uniform, AL; traded to S.I.& E for rod engine
(8-28-1926) Southern Iron & Equip. Co. (D) #2129, Atlanta, GA
Disposition: Scrapped
Additional Notes:
