Lima Locomotive & Machine Co.

Photo Credit:
Howard O. Blackman collection at Vernon Parish Library (c1907)

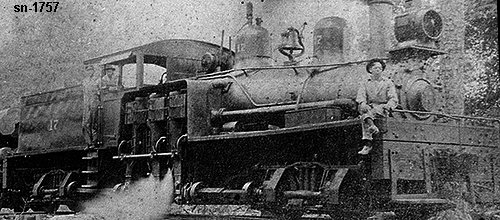

Shop Number 1757 - Built for: Tremont Lbr. Co.
{1,196th Lima Built Shay}
Built:
11-6-1906
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.36
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 3.75 Tons
 Water Capacity:
2,800 Gallons
Empty Weight:
As built
102,840
Owners:
Tremont Lbr. Co. Tremont & Gulf RR #17, Eros, LA
(4-1-1908) Tremont Lbr. Co. Tremont & Gulf RY #17, Eros, LA
Tremont Lbr. Co. Tremont & Gulf RY #17, Joyce, LA
(3-22-1929) Not in service
Disposition: Scrapped
Additional Notes: Shipped to Eros, LA
