Lima Locomotive & Machine Co.

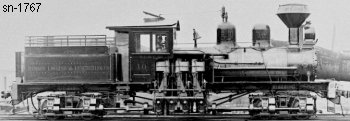

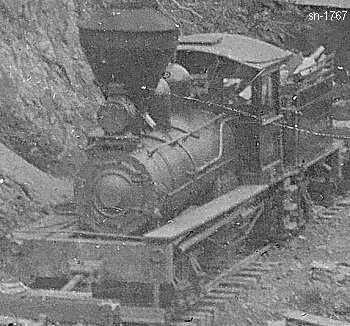

Photo Credit:
Left: Martin E. Hansen collection
Right: George Kadelak collection (BP 12-1906)
Shop Number 1767 - Built for: Benson Log. & Lumbering Co.
{1,206th Lima Built Shay}
Built:
12-31-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.86
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,600
Owners:
Benson Log. & Lumbering Co. #10, Deep River, WA; For:
Deep River Log. Co. #10, Deep River, WA
M. F. Brady & Sons (D), Portland, OR
(by 6-17-1920) Holland, Briggs & Avery Log. Co. #10 (1st), Grays River, WA
(7-11-1922) Multnomah Lbr. & Box Co., Grays River, WA
(7-8-1924) Leased to: Knappton Mills & Lbr. Co., Grays River, WA
(2-4-1925) Hofius Steel & Equip. Co. (D), Seattle, WA; stored in Portland, OR
(3-16-1926) Stored at: Stewart Brothers Co., Portland, OR
Disposition: (2-11-1943) Scrapped at Bethlehem Steel Co., Seattle, WA
Additional Notes:
