Lima Locomotive & Machine Co.

Photo Credit:
Rod Crossley collection

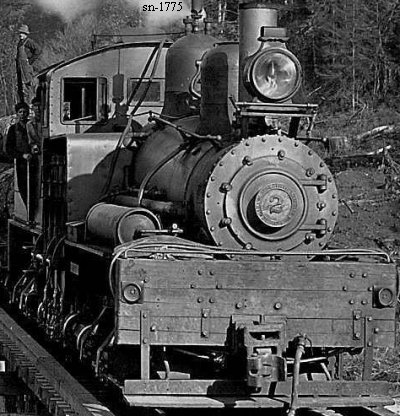

Shop Number 1775 - Built for: Wisconsin Log. & Tbr. Co.
{1,214th Lima Built Shay}
Built:
10-10-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.65
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
63,990
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Wisconsin Log. & Tbr. Co. #1, Stella, WA
Ebey Log. Co., Marysville & Arlington RY #2, Arlington,WA
(1915) Ebey Log.Co., Marysville & Arlington RR #2, Arlington,WA
(6-17-1927) For sale
Disposition: Scrapped
Additional Notes: The Marysville & Arlington RY Co. became the Marysville & Arlington RR Co. in 1915, however the operating railroad was always Marysville & Arlington RY.
