Lima Locomotive & Machine Co.

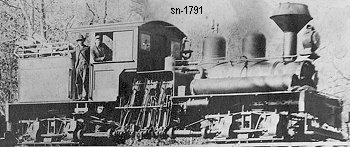

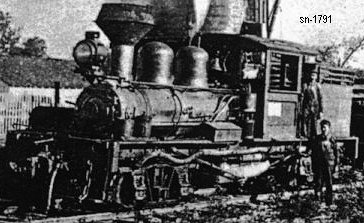

Photo Credit:
Left: George R. Kadelak collection
Right: Searcy County Lib. collection
Shop Number 1791 - Built for: H. D. Williams Cooperage Co.
{1,230th Lima Built Shay}
Built:
10-17-1906
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
4.77
Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
830 Gallons
Empty Weight:
As built
42,400
Owners:
H. D. Williams Cooperage Co. #1, Leslie, AR
Export Cooperage Co. #1, Leslie, AR
(5-28-1920)S outhern Iron & Equip. Co. (D) #1559, Atlanta, GA
(9-14-1920) Scotland Lbr. Co. #1, Ravenswood, LA
(10-1926) R. J. Hackney Lbr. Co., Ravenswood, LA
Disposition: (12-17-1926) Scrapped
Additional Notes: Converted to coal burner
