Lima Locomotive & Machine Co.

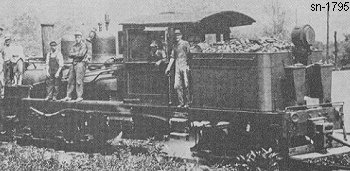

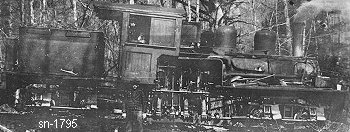

Photo Credit:
Left: Benjamin F. G. Kline collection
Right: Mrs. Irene Brown collection
Shop Number 1795 - Built for: Vincent Lbr. Co.
{1,234th Lima Built Shay}
Built:
12-14-1906
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
42"
Boiler:
[Style - Dia.]
ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
4.92
 Maximum
Safe Speed:
10.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
43,050
Owners:
Vincent Lbr. Co. #2, Denholm, PA
Disposition: (1931) Scrapped
Additional Notes:
