Lima Locomotive & Machine Co.

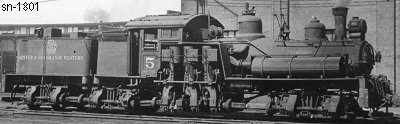

Photo Credit:
Steve Hauff collection (6-4-1933)
Shop Number 1801 - Built for: Denver & Rio Grande RR Co.
{1,240th Lima Built Shay}
Built:
12-22-1906
Class:
C
85-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
40"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 52"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
36,367 Lbs.
Factor of
Adhesion:

5.16
Maximum
Safe Speed:

23.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
151,300
Owners:
Denver & Rio Grande RR, Copper Belt RR #5, Bingham, UT
(8-1-1908) Denver & Rio Grande RR #5 Bingham, UT
(11-15-1920) Denver & Rio Grande Western RR #5, Salt Lake City, UT
Disposition: (5-1936) Scrapped
Additional Notes: (early 1920's) Possibly Stored at Welby Roundhouse
