Lima Locomotive & Machine Co.

Photo Credit:
Ed Bond collection

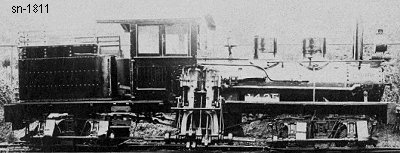

Shop Number 1811 - Built for: Gulledge Brothers Lbr. Co.
{1,250th Lima Built Shay}
Built:
12-15-1906
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 35.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
7,692 Lbs.
 Factor of
Adhesion:
6.08
 Maximum
Safe Speed:
14.3
Fuel Type:
Wood /Coal
 Fuel Capacity:
1.5 Cords / 1.5 Tons
 Water Capacity:
1,000 Gallons
Empty Weight:
As built
37,330
Owners:
Gulledge Brothers Lbr. Co. #2, White, AR
Gulledge Lbr. & Stave Co. #2, Shelton, LA
Gulledge Lbr. & Stave Co. #2, Mendenhall, MS
Southern Iron & Equip. Co. (D) #1435, Atlanta, GA
(9-15-1919) Colmer-Green Lbr. Co. #2, Colgreen, MS
(8-4-1924) For sale
Disposition: Scrapped
Additional Notes:
