Lima Locomotive & Machine Co.

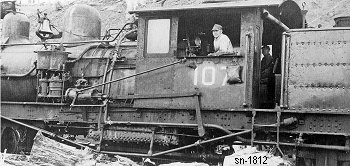

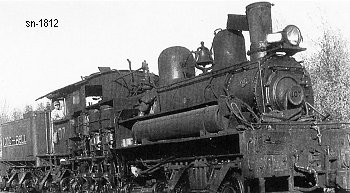

Photo Credit:
Left: by Jim Blain - Right: The Oregon-American Lumber Co. Ain't No More
Shop Number 1812 - Built for: Unknown (cancelled)
{1,251st Lima Built Shay}
Built:
1-15-1907
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 59.75"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
4.89
 Maximum
Safe Speed:
20.9
Fuel Type:
Lignite
Fuel Capacity:
6 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
135,550
Owners:
Lima Locomotive & Machine Co. (B), Lima, OH, for stock when cancelled
(3-4-1907) San Pedro, Los Angeles & Salt Lake RR #61, Tintic, UT
(1916) Los Angeles & Salt Lake RY #61, Tintic, UT
(4-27-1921) Union Pacific RR #61, Tintic, UT
(9-1948) Retired from service
(10-22-1948) Oregon-American Lbr. Corp. #107, Vernonia, OR
(1953) Long-Bell Lbr. Co. #107, Vernonia, OR
Disposition: (1955) Scrapped in Portland, OR
Additional Notes: Shipped to: Salt Lake City
(10-27-26) New boiler
