Lima Locomotive & Machine Co.

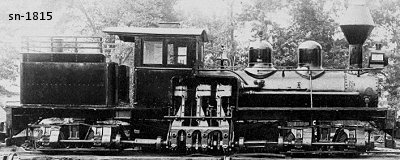

Photo Credit:
Thomas Lawson Jr. collection (c1923)
Shop Number 1815 - Built for: Nichols-Chisholm Lbr. Co.
{1,254th Lima Built Shay}
Built:
1-8-1907
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 37.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,346 Lbs.
 Factor of
Adhesion:
4.32
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
46,500
Owners:
Nichols-Chisholm Lbr. Co., (Chisholm Lbr. Co.) #2, Park Rapids, MN
(8-16-1919) International Shipbuilding Co., Pascagoula, MS
(8-17-1921) For sale
Birmingham Rail & Loco. Co. (D) #1468, Birmingham, AL
(1-10-1924) General Equip. Co., McComb, MS, For:
Forest Products Chemical Co. (Mississippi Chemical Co.) #2, Memphis, TN
Disposition: Scrapped
Additional Notes:
