Lima Locomotive & Machine Co.

Photo Credit:
John Granfols collection

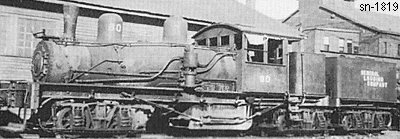

Shop Number 1819 - Built for: Corrigan-McKinney Co.
{1,258th Lima Built Shay}
Built:
2-22-1907
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
29,835 Lbs.
Factor of
Adhesion:

4.69
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
108,900
Owners:
Corrigan-McKinney Co. #11, Virginia, MN
(1-22-1921) The McKinney Steel Co. #11, Aurora, MN
(12-18-1928) General Log. Co. #80, Cascade, MN
Disposition: (1936) Scrapped
Additional Notes: Assigned road number from River Terminal RR roster, which Corrigan-McKinney also owned, but Shays never operated on that RR.
