Lima Locomotive & Machine Co.

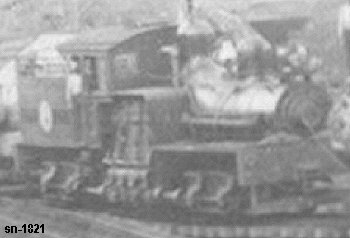

Photo Credit:
Both: from John T. Labbe collection
Shop Number 1821 - Built for: Portland Lbr. Co.
{1,260th Lima Built Shay}
Built:
1-26-1907
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
42"
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,306 Lbs.
Factor of
Adhesion:

4.74
Maximum
Safe Speed:

17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
79,100
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Portland Lbr. Co. #5, Rainier, WA
Noyes-Holland Log. Co. #5, Rainier, WA
(12-1915) [Std.] Noyes Holland Log. Co. #5, Kerry, OR
Koster Products Co., Astoria, OR
(1-21-1921) Silverton Lbr. Co. #5, Mehama, OR
(8-8-1929) Silverton Lbr. Co. #5, Silverton, OR
(12-16-1935) Interstate Log.Co. #5, Glenwood, OR
(8-16-1940) Consolidated Tbr. Co. #5, Glenwood, OR, scrapped upon purchase
Disposition: (8-16-1940) Scrapped by Consolidated Tbr. Co., Glenwood, OR
Additional Notes: Converted to oil burner
