Lima Locomotive & Machine Co.


Photo Credit:
Left: David Thomas collection - Right: Forrest L. Stitzinger collection

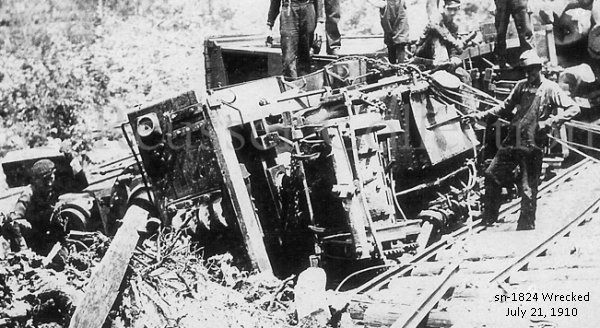

Wrecked: Marc Reusser collection

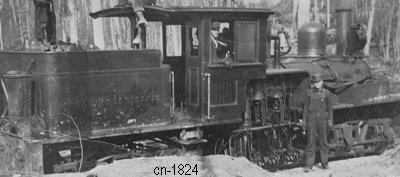

Shop Number 1824 - Built for: G. G. Stitzinger & Co.
{1,263rd Lima Built Shay}
Built:
11-6-1906
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,346 Lbs.
 Factor of
Adhesion:
3.93
 Maximum
Safe Speed:
10.3
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
41,900
Owners:
G. G. Stitzinger & Co. #2, New Castle, PA; For:
Woodbine Lbr. Co. #2, Harry Siding, WV
(5-11-1920) [Std.] Keystone Mfg. Co. (Glade Lbr. Co) #1, Erwin, WV
(1-19-1922) For sale
Disposition: Scrapped
Additional Notes:
