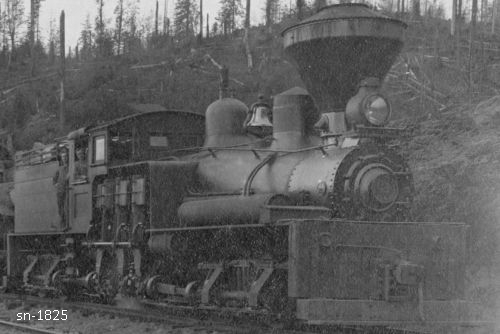

Lima Locomotive & Machine Co.

Photo Credit:
Martin E. Hansen collection
Shop Number 1825 - Built for: Lytle Log. & Mercantile Co.
{1,264th Lima Built Shay}
Built:
3-3-1907
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.34
Maximum
Safe Speed:

19.4
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
102,175
Owners:
Hofius Steel & Equip. Co. #2, Seattle, Wa
Lytle Log. & Mercantile Co., #2, Hoquiam, WA
Copalis Lbr. Co., Carlisle, WA
(10-24-1922) Carlisle-Pennell Lbr. Co., Carlisle, WA
Converted to coal burner
(by 8-28-1924) Carlisle-Pennell Lbr. Co. #6, Onalaska, WA
(7-22-1926 thru 11-22-1928) For sale
Disposition: Scrapped
Additional Notes:
