Lima Locomotive & Machine Co.
Photo Credit:

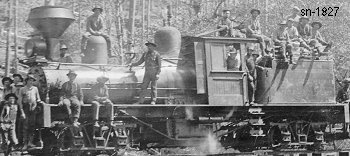

Left: by unknown

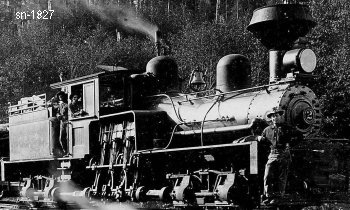

Right: Rod Crossley collection
Shop Number 1827 - Built for: Coos Bay Lbr. & Coal Co.
{1,266th Lima Built Shay}
Built:
1-29-1907
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.65
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
64,000
Owners:
Hofius Steel & Equip. Co., Seattle, WA
Coos Bay Lbr. & Coal Co. #2, Marshfield, OR
Smith Lbr. & Mfg. Co. (Smith-Powers Log. Co.) #2, Powers, OR
Smith-Powers Log. Co. #2, Powers, OR
(4-17-1930) Zimmerman, Wells & Brown Co. (D), Portland, OR
(11-1932) Columbia Contract Co., St. Helens, OR
Disposition: Scrapped
Additional Notes: Shipped to: San Francisco, CA
