Lima Locomotive & Machine Co.

Photo Credit:
John Henderson collection

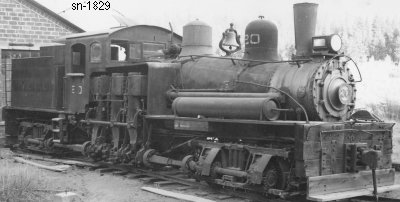

Shop Number 1829 - Built for: Stimson Mill Co.
{1,268th Lima Built Shay}
Built:
5-3-1907
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
40"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.53
Maximum
Safe Speed:

19.4
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
109,600
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Stimson Mill Co., Marysville & Northern RY #20, Bryant, WA
Railway Equip. Co. #20, Portland, OR
(9-17-1918) Spruce Production Division (U. S. Army), Clatsop, OR
(9-17-1918) Grant, Smith-Porter Brothers Co.*, Lewis & Clark RR #20 [SPRR #9], Clatsop, OR (assigned)
(10-1918) Spruce Production Corp. (U. S. Army), Clatsop, OR
(12-1918) Sent to Vancouver Barracks, Vancouver, WA: for sale
(by 1-24-1921) Verdi Lbr. Co. #20, Verdi, NV
(5-27-1926) For sale
(9-26-1927) Oshkosh Land & Tbr.Co. #20, Braymill, OR
(4-14-1928) Braymill White Pine Co. #20, Braymill, OR
Disposition: *Cost-plus contractor for Spruce Production Division (U. S. Army)
SPRR #9 was Spruce Production RR #, the designation used by Spruce Production Division
(8-1964) Partly scrapped, boiler at Braymill, OR
Additional Notes:
