Lima Locomotive & Machine Co.

Photo Credit:
Martin E. Hansen collection

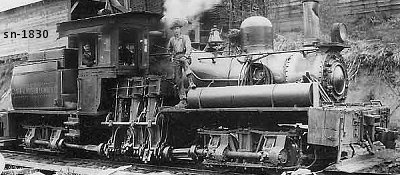

Shop Number 1830 - Built for: Columbia Tbr. Co.
{1,269th Lima Built Shay}
Built:
2-23-1907
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.76
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
65,800
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Columbia Tbr. Co., Goble, Nehalem & Pacific RY #1, Goble, OR
(c1912) Converted to oil burner
(by 7-29-1922) Clark & Wilson Lbr. Co. #1, Nehalem Jct., OR
(by 12-29-1927) Clark & Wilson Lbr. Co., Wilark, OR
Disposition: Scrapped
Additional Notes: (12-1927) Trucks ordered for 991 placed under 1830 at Wilark, OR
