Lima Locomotive & Machine Co.

Photo Credit:

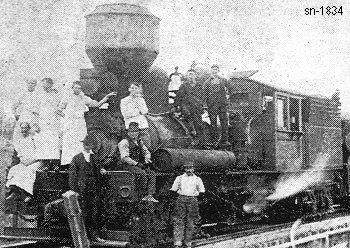

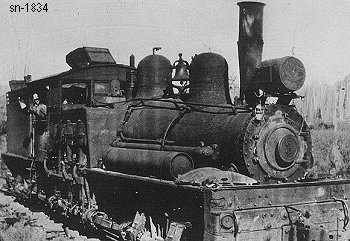

Left: by Harry Cadwell from Fairbanks Morse collection (1912) - Right: Alberta Railway Museum
Shop Number 1834 - Built for: Otis Staples Lbr. Co.
{1,273rd Lima Built Shay}
Built:
4-16-1907
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,852 Lbs.
 Factor of
Adhesion:
4.49
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 3.75 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
98,800
Owners:
Otis Staples Lbr. Co., St. Mary & Cherry Creek RY #3, Wycliff, BC, CAN
(10-27-1927) North West Lbr. Co., Ltd. #3, Green Court, Alberta, CAN
Disposition: Scrapped
Additional Notes: (5-22-1933) Likely stored at Canadian National Railways, Green Court, Alberta, CAN
