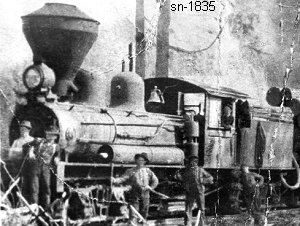

Lima Locomotive & Machine Co.
Photo Credit:
Left: Nakusp Museum collection
Right: Kelowna Museum Library collection
Shop Number 1835 - Built for: Lamb-Watson Lbr. Co.
{1,274th Lima Built Shay}
Built:
4-12-1907
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.93
Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,800
Owners:
Arrow Lakes Lbr. Co. (Lamb-Watson Lbr. Co., Ltd.) #7 "CHANCEY", Arrowhead, BC, CAN
(8-1912) Western Canada Power Co. Of Canada #7, Ruskin, BC, CAN
Canadian Willamette Co., Ltd. (D), Vancouver, BC, CAN
(1921) British Columbia Electric RY #7, Ruskin, BC, CAN
(5-1-1926) Bernard Tbr. & Log. Co. #3, Port Neville (on Oxford Bay), BC, CAN
Homalko Log. Co., Ltd. #3, Bute Inlet, BC, CAN
Disposition: Scrapped
Additional Notes:
