Lima Locomotive & Machine Co.

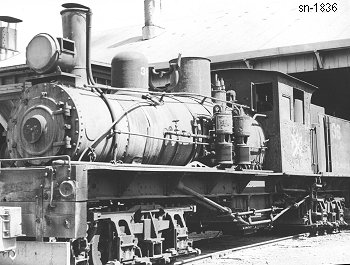

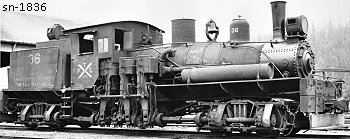

Photo Credit:
Left: Jack Holst collection
Right: John T. Labbe collection
Shop Number 1836 - Built for: Metropolitan Redwood Lbr. Co.
{1,275th Lima Built Shay}
Built:
5-3-1907
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.37
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
103,300
Owners:
Normand B. Livermore & Co. (D), San Francisco, CA
(5-3-1907) Metropolitan Redwood Lbr. Co. #1, Metropolitan, CA
Leased to: Bayside Lbr. Co. #4, Bayside, CA
(10-9-1935) The Pacific Lbr. Co. #36, Scotia, CA
Disposition: (1953) Scrapped
Additional Notes:
