Lima Locomotive & Machine Co.

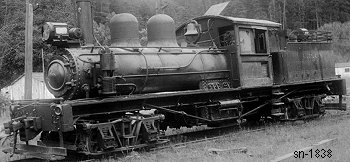

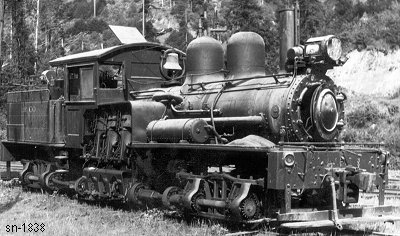

Photo Credit:
Left: George R. Kadelak collection
Right: Marc Reusser collection
Shop Number 1838 - Built for: Glen Blair Redwood Co.
{1,277th Lima Built Shay}
Built:
3-18-1907
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.76
Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
65,900
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Glen Blair Redwood Co. #2, Glen Blair, CA
(5-6-1929) Union Lbr. Co. #2, Fort Bragg, CA
Disposition: (1950) Scrapped
Additional Notes:
