Lima Locomotive & Machine Co.

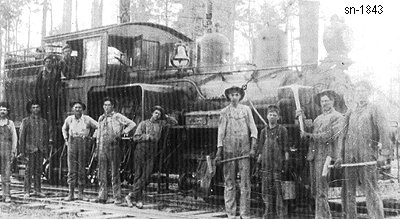

Photo Credit:
George R. Kadelak collection

Shop Number 1843	-	Built for: Bluff City Lbr. Co.
{1,282nd Lima Built Shay}

Built: 1-22-1907	Class: B 20-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 8 x 8
Gear Ratio: 2.176	Wheel Dia.: 26.5"	Gauge: std.	Boiler: [Style - Dia.] ST. - 35.5"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 7,568 Lbs.	Factor of Adhesion: 6.91	Maximum Safe Speed: 14.5
Fuel Type: Coal	Fuel Capacity: 1.75 Tons	Water Capacity: 1,000 Gallons	Empty Weight: As built 41,700
Owners: Bluff City Lbr. Co., Anderson & Saline River RR #8, Clio, AR (6-1909) Clio Lbr. Co. #2, Clio, AR (2-1912) Triangle Lbr. Co. #3, Clio, AR Lundell Land & Lbr. Co. #8, Lundell, AR Archer Lbr. Co. #8, Lundell, AR (4-26-1924) For sale T. L. Shannon & Brothers #1, Ferguson, AR
Disposition: Scrapped
Additional Notes:
