Lima Locomotive & Machine Co.

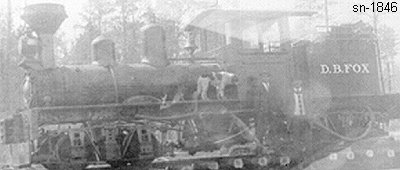

Photo Credit:
Left: Estelle Fox White collection - Right: Al Spinks collection
Shop Number 1846 - Built for: Richton Lbr. Co.
{1,285th Lima Built Shay}
Built:
2-8-1907
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,334 Lbs.
 Factor of
Adhesion:
4.89
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
730 Gallons
Empty Weight:
As built
33,650
Owners:
Richton Lbr. Co. #1, Richton, MS
(by 12-1911) D. B. Fox Lbr. Co. #1 (1st), Ovett (Laurel), MS
(c1-1918) D. B. Fox Lbr. Co. #1, Alene, MS
(by 1930) gone from mill to unknown
Disposition: Scrapped
Additional Notes:
