Lima Locomotive & Machine Co.

Photo Credit:
Left: Clark Kinsey (c1925) -Right: Marc Reusser collection

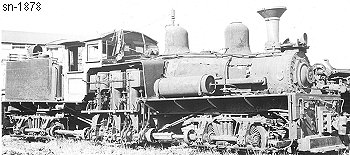

Shop Number 1878 - Built for: Izett Log. Co.
{1,317th Lima Built Shay}
Built:
2-8-1907
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.08
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
101,370
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Izett Lbr. Co. #2, Brinnon, WA
English Lbr. Co., Skagit Valley RR #2 later #5 (2nd), Fir, WA
Hofius Steel & Equip. Co. (D), Seattle, WA
(5-21-1923) Apex Tbr. Co. #5, Pe Ell, WA
(5-28-1927) For sale
(5-1938) Peterman Mfg. Co. #5, Tacoma, WA
Disposition: Scrapped
Additional Notes: Shipped to: Seattle, WA
