Lima Locomotive & Machine Co.

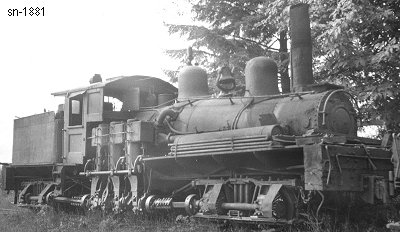

Photo Credit:
Thomas Larson Jr. collection (9-23-1939)
Shop Number 1881 - Built for: Lyman Tbr. Co.
{1,320th Lima Built Shay}
Built:
5-2-1907
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.04
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
100,400
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Lyman Tbr. Co. #3, Hamilton, WA
Hamilton Log. Co. #3, Hamilton, WA
(1917) Lyman Tbr.Co. #3, Hamilton, WA
(1937) Soundview Pulp Co. #2, Hamilton, WA
Disposition: (12-8-1939) Scrapped
Additional Notes: (9-1939) photographed still in service
