Lima Locomotive & Machine Co.

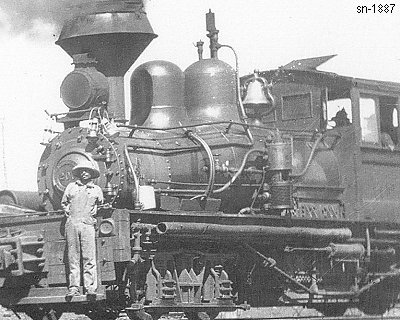

Photo Credit:
Martin E. Hansen Collection (after 8-1910)
Shop Number 1887 - Built for: Sierra Madre Land & Lbr. Co.
{1,326th Lima Built Shay}
Built:
5-25-1907
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.41
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
81,650
Owners:
Sierra Madre Land & Lbr. Co. (Cananea Consolidated Copper Co. RY), Mexico North Western RY Co. #200, Ciudad Juarez, CHH, Mexico
Disposition: Scrapped
Additional Notes: Office at San Pedro Springs, Chi., Mexico
Converted to coal burner
Mexico North Western RY Co. was Nor Oeste de Mexico (Spanish spelling)
