Lima Locomotive & Machine Co.

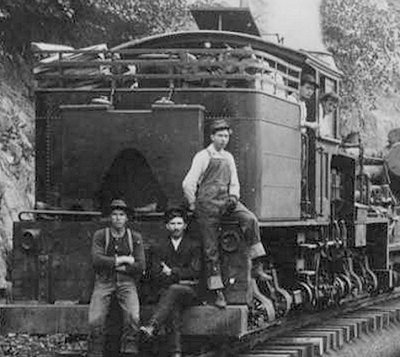

Photo Credit:
by unknown
Shop Number 1889 - Built for: Inman-Poulsen Log. Co.
{1,328th Lima Built Shay}
Built:
2-9-1907
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
42"
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
4.96
Maximum
Safe Speed:
16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
60,800
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Inman-Poulsen Log. Co. #2, Eufaula, WA
(11-15-1923) [Std.] Inman-Poulsen Log. Co. #2, Keasey, OR
Loggers & Contractors Machinery Co.(D) , Portland, OR
(by 3-21-1920) L. B. Porter Log. Co., Independence [Palmers Spur], OR
Disposition: Scrapped
Additional Notes: (3-9-1927) out of business, Shay still stands at Palmers Spur, OR
