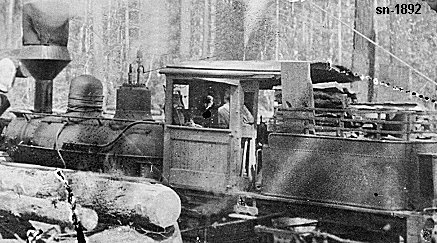

Lima Locomotive & Machine Co.

Photo Credit:
James B. Bane collection
Shop Number 1892 - Built for: Oregon Lbr. Co.
{1,331st Lima Built Shay}
Built:
5-10-1907
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,350 Lbs.
Factor of
Adhesion:

4.25
Maximum
Safe Speed:

10.3
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
850 Gallons
Empty Weight:
As built
47,500
Owners:
Oregon Lbr. Co., Mt. Hood RR Co.#2, Hood River, OR
(12-27-1927) Oregon Lbr. Co. #2, Dee, OR
Disposition: (5-26-1948) Scrapped
Additional Notes:
