Lima Locomotive & Machine Co.

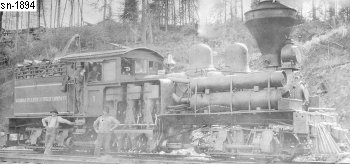

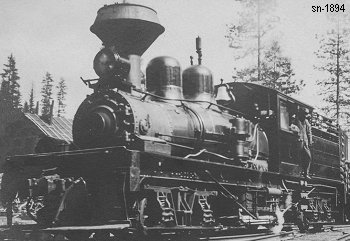

Photo Credit:
Left: David Thomas collection
Right: Carl Haaland collection
Shop Number 1894 - Built for: George Palmer Lbr. Co.
{1,333rd Lima Built Shay}
Built:
3-15-1907
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.36
Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
80,400
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
George Palmer Lbr. Co. #1, La Grande, OR
(3-21-1923) Bowman-Hicks Lbr. Co. #1, Maxville, OR
(2-15-1934) For sale
Disposition: Scrapped
Additional Notes: Shipped to: Elgin, OR
Converted to coal burner
Converted to oil burner
