Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 8-1907)

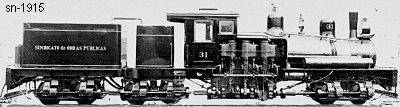

Shop Number 1915 - Built for: Sindicato de Obras Publicas
{1,354th Lima Built Shay}
Built:
8-17-1907
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
39.375
[1 Meter]
 Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.57
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
136,400
Owners:
Sindicato de Obras Publicas #31, Santiago (Arico), Chile
F. C. de Arica a la Paz, #31, Santiago (Arico), Chile
(1929) Bolivian Governement, La Paz, Boliva
Disposition: Scrapped
Additional Notes: Shipped to W. R. Grace & Company, NYC, NY
