Lima Locomotive & Machine Co.

Photo Credit:
by Clark Kinsey

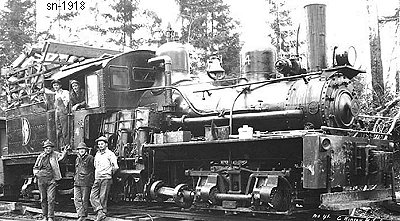

Shop Number 1918 - Built for: Snohomish Log. Co.
{1,357th Lima Built Shay}
Built:
6-1-1907
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.94
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Snohomish Log. Co. #4, Snohomish, WA
(10-1-1923) Luedinghaus Lbr. Co. #4, Dryad, WA
(1925) Wrecked and rebuilt
(3-20-1929) Schafer Brothers Log. Co. #4 (2nd), Dryad, WA
Disposition: Scrapped
Additional Notes:
Updated: 4-16-2013
