Lima Locomotive & Machine Co.

Photo Credit:
Left: Silver City Public Library - Right: Narrow Gauge & Shortline Gazette

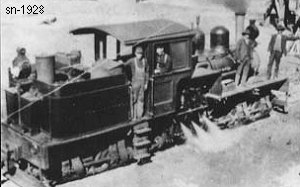

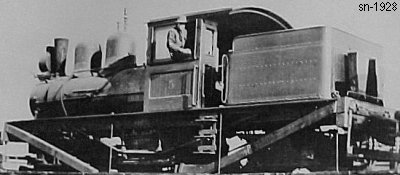

Shop Number 1928	-	Built for: Commanche Mining & Smelting Co.
{1,367th Lima Built Shay}

Built: 6-29-1907	Class: B 36-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 10
Gear Ratio: 2.05	Wheel Dia.: 28"	Gauge: 24"	Boiler: [Style - Dia.] ST. - 44"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 14,826 Lbs.	Factor of Adhesion: 5.19	Maximum Safe Speed: 16.3
Fuel Type: Coal	Fuel Capacity: 1.75 Tons	Water Capacity: 1,200 Gallons	Empty Weight: As built 62,790
Owners: Comanche Mining & Smelting Co., Silver City, Pinos Altos & Mogollon RY #5 Silver City, NM (10-19-1908) Savanna Copper Co., Silver City, Pinos Altos & Mogollon RR #5, Silver City, NM (1913) Walter A. Zelnicker Supply Co. (D), St. Louis, MO (12-21-1926) [42"] W. M. Ritter Lbr. Co., Big Sandy & Cumberland RR #5, Devon, WV,
Disposition: Scrapped
Additional Notes:
